Herringbone Stallwork

We manufacture herringbone stallwork for both swing over and lowline parlours. With either straight or cranked rump rails. The standard cranked rump rail stallwork is manufactured at 760mm (2ft. 6ins) centres, but options are available at 800mm and 900mm (3ft.) centres. The stallwork is manufactured in sections of either 10 feet or 15 feet with support section to overhead beams at these centres. This caters for mounting in portal frame buildings of either 10 foot, 15 foot or 20 foot centres with intermediate posts. We have parlours in use from sixteen cows up to 80 cows. The rump rails, kick rails and breast rails are all manufactured from 60 mm tube which is strong smooth and cow confortable. The kick rails are stepped in from the rump rail to encourage the cows to stand with their legs apart to make cluster attachments easy.

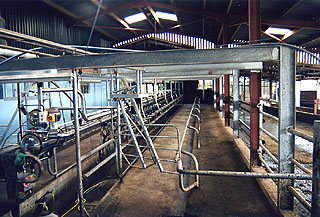

Swing over, cranked rump rail, straight
adjustable breast rail. Non feeding.

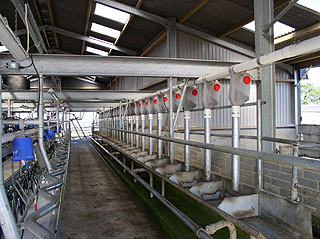

Swing over, cranked rump rail, straight
adjustable breast rail. With feeding.

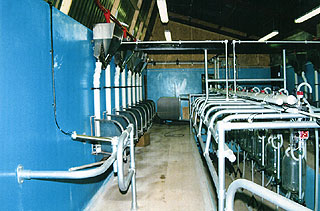

Straight breast rail, echeleon mangers,
individual feeding
.

Please contact us for details and prices.

email, phone or fax.
